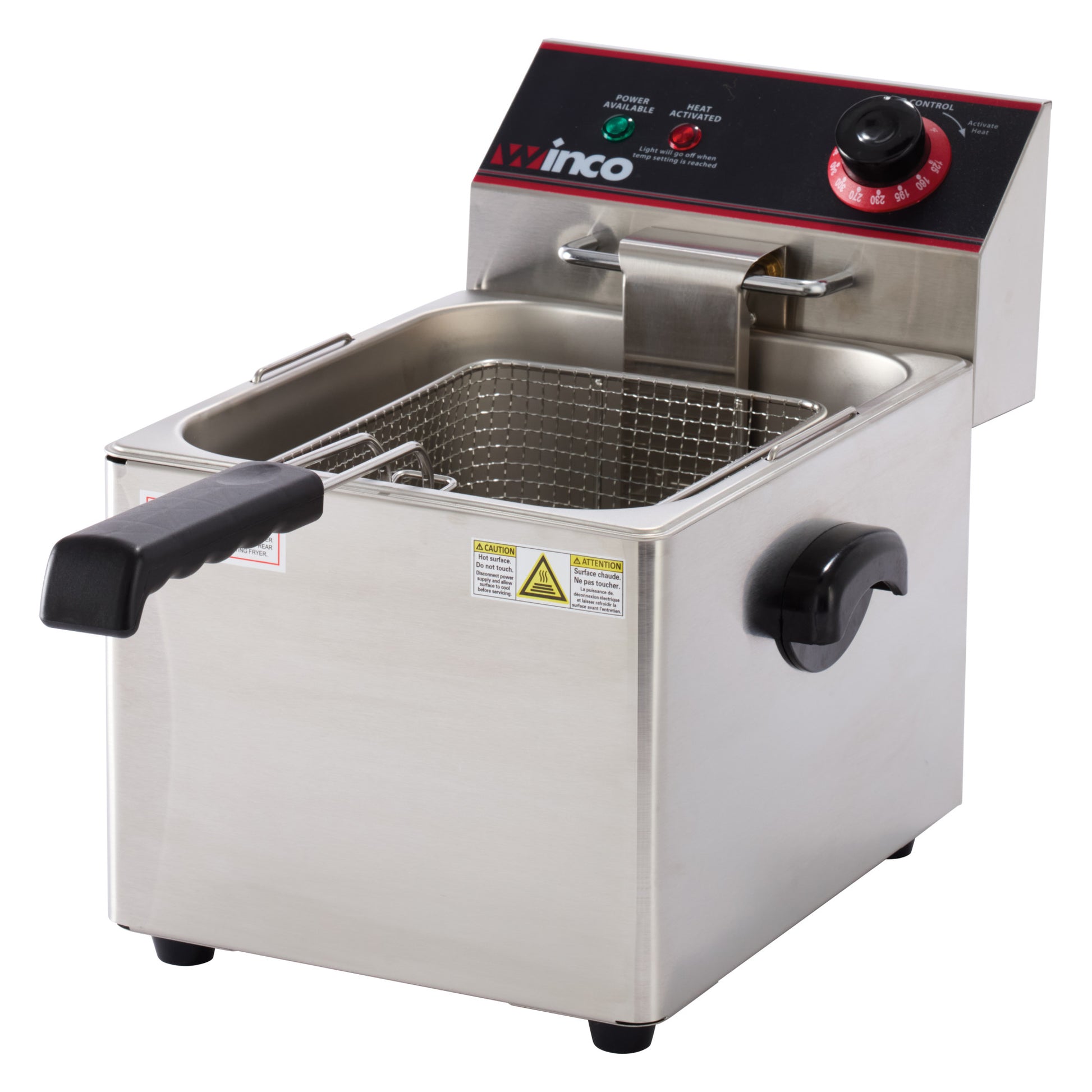

EFS-16 - Electric Single Well Deep Fryer

EFS-16 - Electric Single Well Deep Fryer


Size: Single Well

  • Quick Heating –Powerful 1750 watt heating elements ensure fast heating and temperature recovery
  • Commercial-Grade – Stainless steel body and heavy-duty heating elements designed to withstand daily use in commercial foodservice applications
  • Easy Clean – Steel fry wells remove for easy cleaning
  • 120V~60Hz, 1750W, 15A

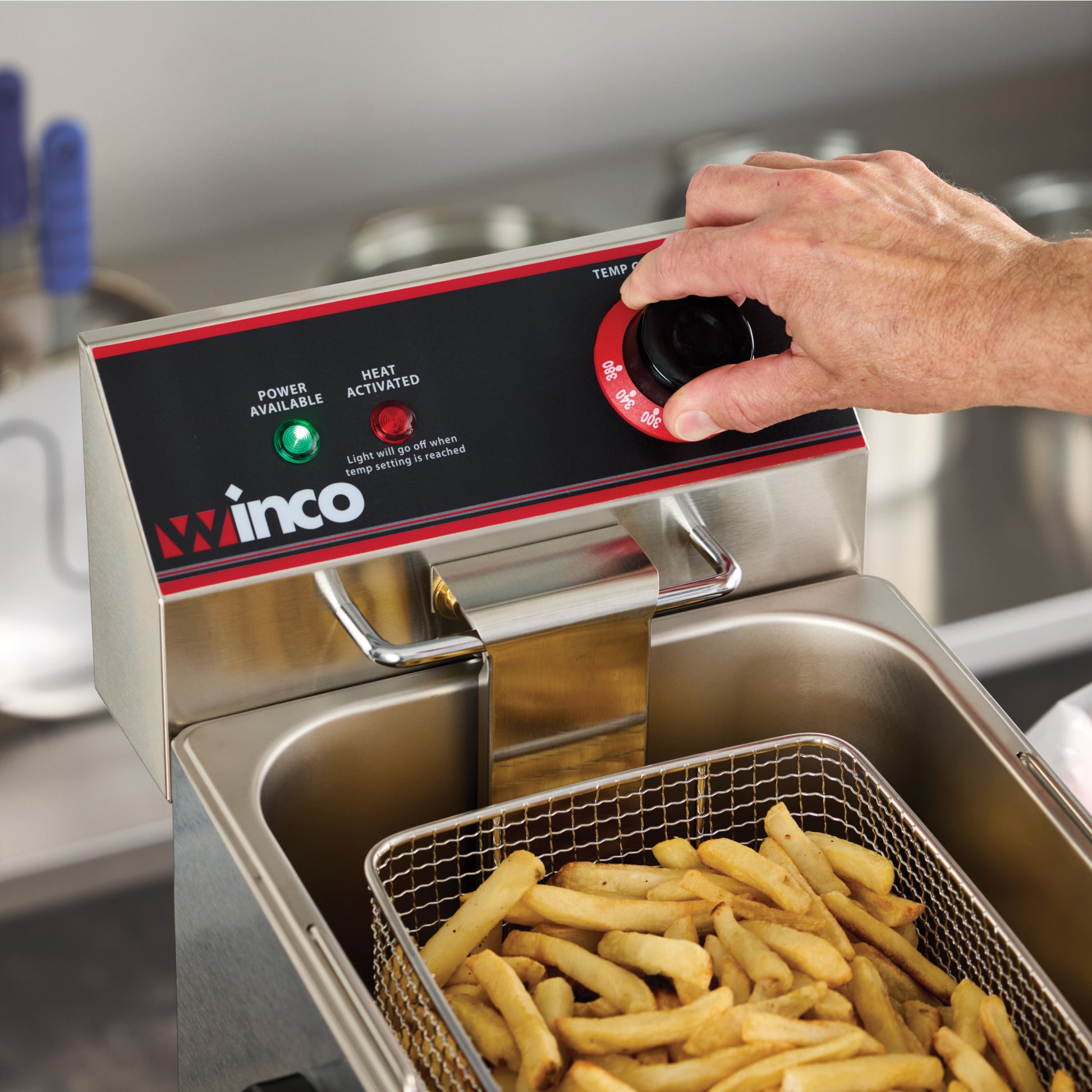

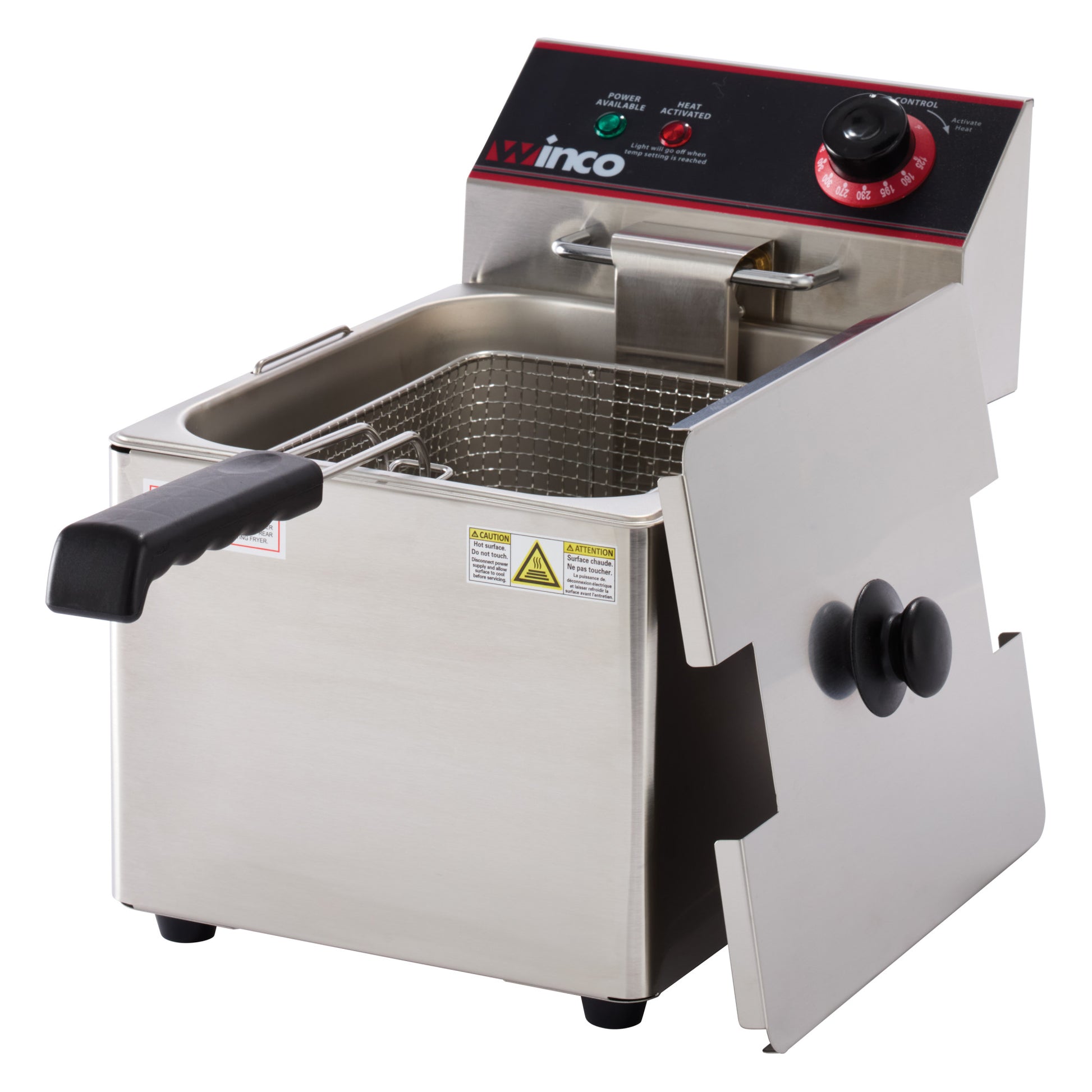

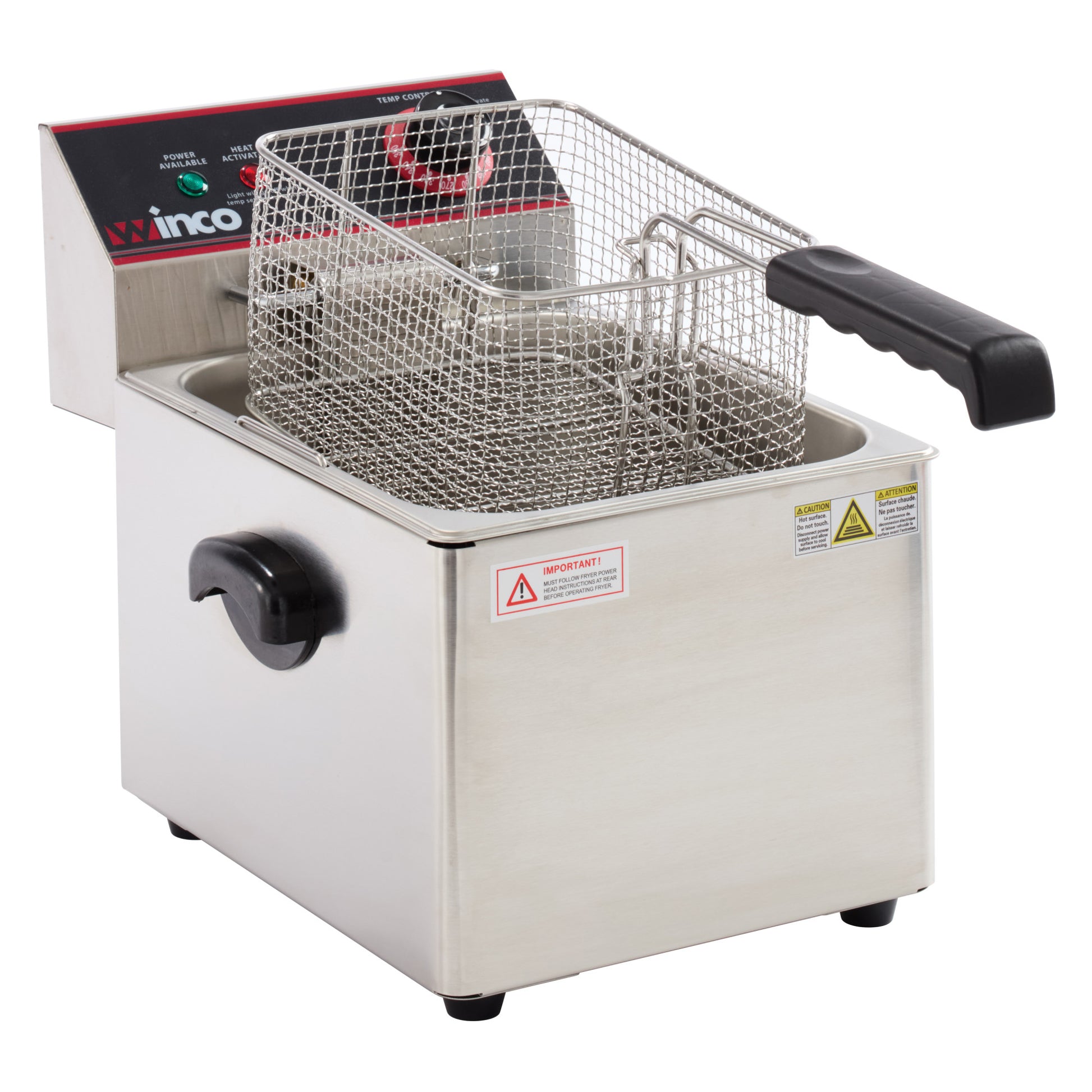

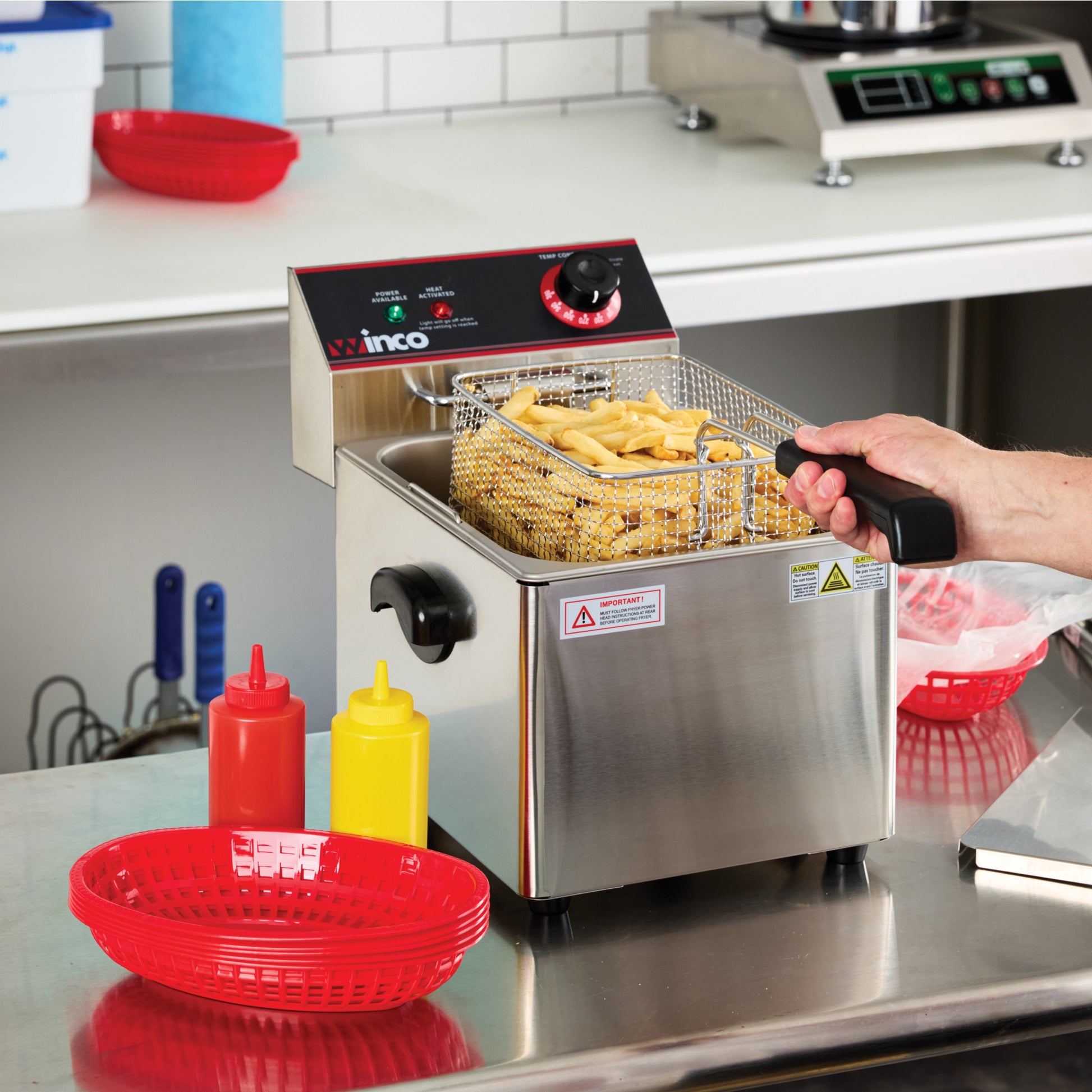

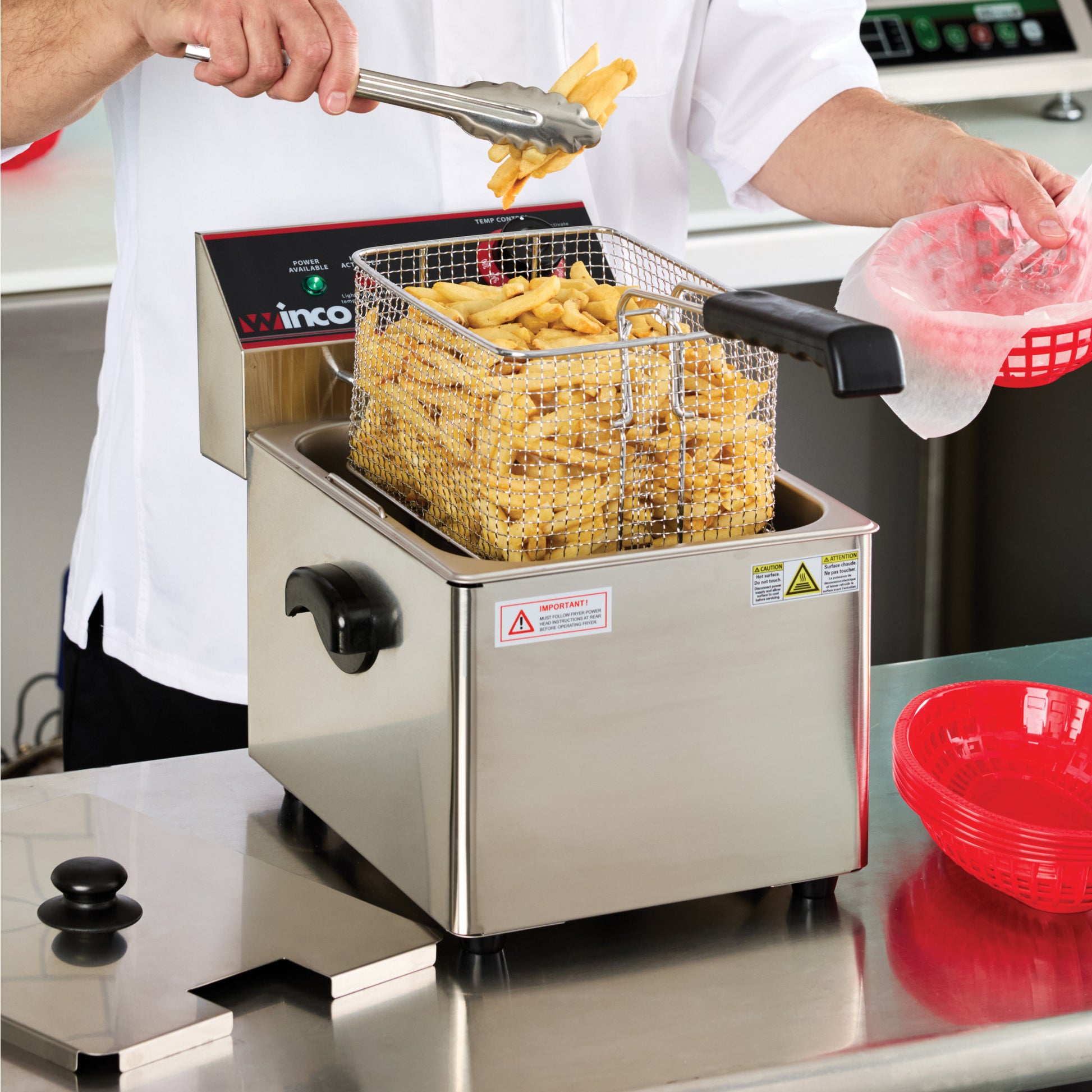

  • The Winco EFS-16 electric countertop deep fryer features 1 deep well ideal for frying vegetables, chicken, french fries and more. This commercial-grade deep fryer features a powerful 1750 watt heating element that ensures fast heating and quick temperature recovery ideal for daily use in restaurants, concessions stands, fast food and more. Steel fryer wells come with covers and can be easily removed for quick cleanup. A variable heating knob ensures the deep fryer can be adjusted to the precise temperature needed. Includes (1) commercial fryer basket and a removable power head. 8 liters = 16 lbs = 2.3 gallons of oil. Overall dimensions: 11-3/4″L x 16″W x 13-5/8″H. 120V~60Hz, 1750W, 15A.


  • ETL Certified-Canada & USAETL Certified-Canada & USA
  • ETL Sanitation CertifiedETL Sanitation Certified
  • Cash & CarryCash & Carry
  • View full details
    • MaterialStainless Steel
      Length11.75 in29.85 cm
      Width16.0 in40.64 cm
      Height13.63 in34.61 cm

    • UOMSet
      Case Pack1
      Quantity Break1
      Case Weight19.9 lbs9.03 kg

    Replacement Parts

    Part #Description
    EFST-P10Panel Sticker Front Control Decal for EFS-16 / EFT-32
    EFST-P12-GGreen Indicator Light for EFS-16, EFT-32
    EFST-P13-RRed Indicator Light for EFS-16, EFT-32, ESG-1, EPG-1, ESG-2, EPG-2

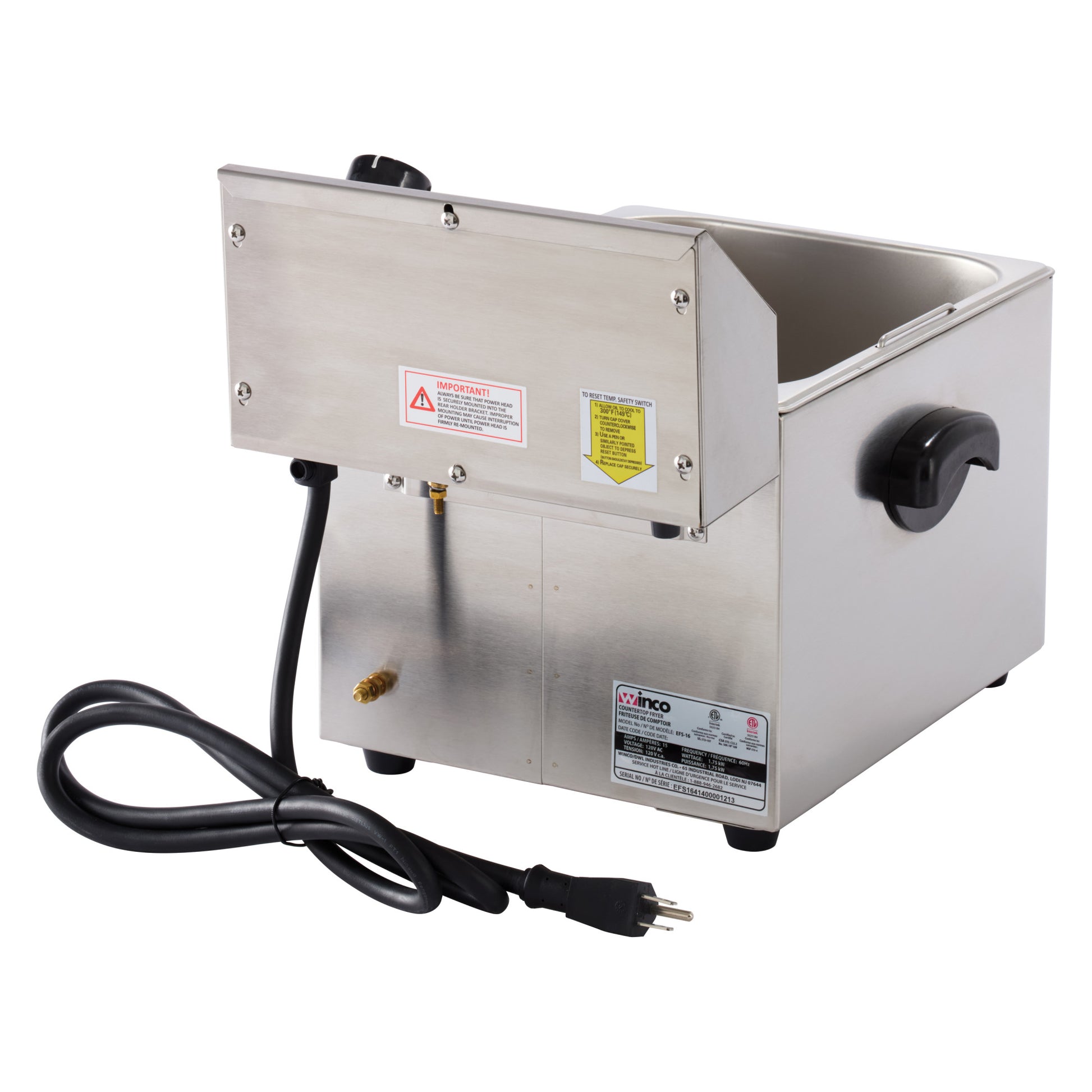

    EFST-P15Power Cord for EFS-16 / EFT-32
    EFST-P16EGO Thermostat w/ Capillary Bulb
    EFST-P18Heating Element for EFS-16 and EFT-32
    EFST-P19Stainless Steel Well for EFS-16 and EFT-32
    EFST-P20Position-Limiting Microswitch for EFS-16 / EFT-32
    EFST-P32Manual Reset Temperature Limiter for EFS-16 / EFT-32
    EFST-P35Stainless Steel Fryer Basket Cover for EFS-16 / EFT-32
    EFST-P36Temperature Knob Insert for EFS-16 / EFT-32, Includes Red Ring and Black Knob
    EFST-P9EFS-16 / EFT-32 Power Cord Strain Reflief Bushing
    ESW66-P40Terminal Block for ESW-66 and ESH-Series, EFS/EFT
    EFT-32PHPower Head Assembly for EFS-16 / EFT-32
    FWS500-P59Rubber Feet (4pcs/pack) for FW-S500, FW-S600, FW-L600, FW-S800, EPG/ESG, EFS/EFT
    EPSG-CP2Thermostat for EPG-1C and EFS-16/EFT-32
